Brand Name : Bako Vision
Model Number : BG
Certification : CCC.CE.ETL.FCC
Place of Origin : China
MOQ : 1 m²
Price : Negotiating Prices
Payment Terms : L/C, T/T, Western Union
Supply Ability : 10,000sqm
Delivery Time : 15days
Packaging Details : Plywood Case
Panel Material : Aluminum
Colours : 281 Trillion
Grayscale : 16 Bits
Contrast Ratio : 2000:1
Refresh Rate : >1920 Hz
Servicing : Rear
Led Type : SMD1921
Powre Supply : Meanwell

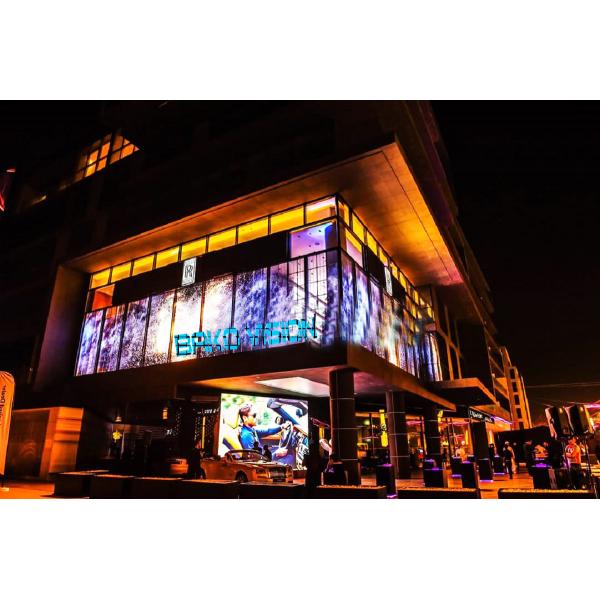

High Transparent LED Display Glass Wall, Creative Interactive Screen Clarity for Effective Advertising Show
60-80% transparency
rate among different pitches
Variable brightness options for day and night environment
| Module | |
| Pixel Pitch | 3.75 * 6.67mm |
| Pixel Density | 39,900 pixel/sqm |
| Pixel Quantity (W * H) | 128* 48mm |
| Module Size | 480 * 320mm |
| LED Type | SMD1921 |
| LED Configuration | 1R1G1B |
| Cabinet | |
| Resolution (W * H) | 256* 96mm |
| Dimension(mm)(W * H) | 960*640mm |
| Cabinet Material | Die-Casting |
| Cabinet Weight | 11kg/m² |
| IP Rating(Front/Rear) | IP30 |
| Screen | |
| Brightness | >5,500nits |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Gray Scale | 16bits |
| Refresh Rate | >1,920Hz |
| Dot Defects Rate | <0.0001 |
| Viewing Angle (H/V) | 160°/140° |
| Life Span | ≥100000hrs |
| Power Consumption(avg.) | 75/150W/Panel |
| Operating Temp/Humidity | ﹣10℃~60℃ / 10%~60%RH |
| Storage Temp/Humidity | ﹣30℃~60℃ / 10%~60%RH |
Application:



COMPANY INTRODUCTION
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
|
|
